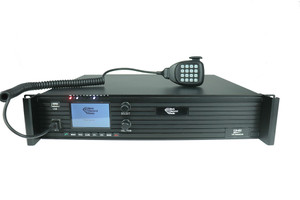

DMR Repeater BD-6000DM (w/Duplexer)

Write a Review
SKU:
RP6000D
$6,495.95 $10,999.85
Current Stock:
  • Built-in Duplexer Requires Only 1 Antenna
  • 16 Zones (256 Digital & 256 Analog Channels)
  • 3.5" Color TFT Display
  • TDMA Technology
  • Scan
  • Backlight Control
  • High / Low Power
  • Profile Options
  • Keytone Control
  • Display Mode
  • Effortless Zone Setting
  • Can function as base station with included Speaker Microphone
General
Band UHF VHF
Zone Capacity 16
Channel Capacity per Zone 16
Typical RF Output 25-40W 25-50W
Frequency Range 400-520 MHz 136-174 MHz
Dimensions (HxWxD) 88mm x 483mm x 366mm
Voltage Demand 100-240 VAC (13.6 VDC)
Weight 14kg
Current Consumption
Standby 1.0 A (100VAC) 0.5 A
Transmitting 4.0 A (100VAC) 1.8 A
Operating Temperature -30°C to +60°C
FCC Description ABZ99FT4025 ABZ99FT3025


Receiver
Band UHF VHF
Frequency Range 400-520 MHz 136-174 MHz
Channel Spacing 12.5 kHz / 25 kHz
Frequency Stability
(-30°C, +60°C, +25°C)
+/- 0.5 ppm
Analog Sensitivity 0.25 uV (12 dB SINAD)
0.35 uV (12 dB SINAD)
0.2 uV (Typical)
Digital Sensitivity 5% BER: 0.3 uV
Intermodulation TIA603C ETS 75 dB
70dB
Adjacent Channel Selectivity 60 dB @ 12.5 kHz
70 dB @ 25 kHz
Spurious Rejection TIA603C 75 dB
70 dB
80 dB
70 dB
Audio Distortion @ Rated Audio 3% (Typical)
Hum & Noise -40 dB @ 12.5 kHz
-45 dB @ 25 kHz
Audio Response +1, -3 dB
Conducted Spurious Emission -57 dBm


Transmitter
Band UHF VHF
Frequency Range 400-520 MHz 136-174 MHz
Channel Spacing 12.5 kHz / 25 kHz
Frequency Stability
(-30°C, +60°C, +25°C)
+/- 1.5 ppm (XiR M8260)
+/- 0.5 ppm (XiR M8268)
RF Output 25-40W 25-50W
Modulation Limit +/- 2.5 @ 12.5 kHz
+/- 5.0 @ 25 kHz
FM Hum and Noise -40 @ 12.5 kHz
-45 @ 25 kHz
Conducted / Radiated Emission -36 dBm < 1 GHz
-30 dBm > 1 GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 25 kHz
Audio Response +1, -3 dB
FM Modulation 12.5 kHz: 11KOF3E
25 kHz: 16KOF3E
4FSK Digital Modulation 12.5 kHz Data: 7K60FXD
25 kHz Data: 7K60FXD
Digital Vocoder AMBE+2™
Digital Protocol ETSI-TS102 361-1
