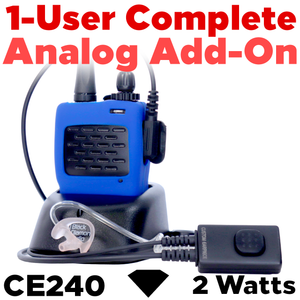

CE240 2-Watt Analog Two-Way Radio

CE240 2-Watt Analog Two-Way Radio

Write a Review
SKU:
RDCE24-01
$199.95 $229.95
Current Stock:
The CE240 is a tiny, strong, and versatile radio. This is perfect for short distance applications such as Dental/Medical Offices, Veterinary Offices, Caterers, Restaurants, and Retail Establishments.

The CE240 is the smallest, lightest INDUSTRIAL radio made. This means it is tough and that you will never compete for channel space with truckers or kids on skateboards. The CE240 is based on a cast aluminum chassis and meets military specifications (810 C/D/E) for splash and drop testing. This radio is Narrow Band Compliant so you won't have regulatory problems and we can program it to work with your existing radios. And with Black Diamond Radio there are no programming charges (EVER) to the original purchaser!

The CE240 is also exceptionally easy to use. Most users will stay on one channel, but you have 16 available. We designed this radio to work with an earpiece, so when you change channels, it announces the channel to you.


Feature CE240 Motorola™CLS
Dimensions 3.9 x 2.0 x 1.25 in. 5.8 x 2.0 x 1.1 in.
Output Power 2W 1W
Weight 3.5oz 4.6oz
Battery 1300 mAH LiIon 800 mAH LiIon
Channels 16 1
Privacy Tones 157 121
Chassis Aluminum Plastic
Military Specification, 810 C/D/E
Impact/Splash Resistance		 Yes No
Voice Annunciation Yes No
Narrow Band Compliant Yes Yes
Charger/Time Electronic
1HR		 Electronic
3HR
Belt Clip Yes Yes
Vox Yes No
  • 107 DCS Tones
  • 50 CTCSS Tones
  • Time Out Timer
  • Low Power Alarm
  • Channel/Priority Scanning
  • PC Programmable
  • Li-ion Battery Pack
  • Squelch Level Setting
  • Busy Channel Lock Out
  • Lighting function
  • Channel Announce Voice
  • Programmable 25kHz(Wide) 12.5kHz(Narrow) Channel Spacing Switch
  • CO/TO/SE Scan Switch
  • Wired Cloning
  • VOX


    • Technical Performance
    Frequency Range 420-480MHZ
    Channel Capacity 16
    PLL Channel Spacing 12.5/25KHz
    Battery Voltage 7.4V (Li-Ion)
    Antenna Impedance 50Ω
    Dimension (H x W x D) 80 x 45 x 24mm
    Weight (W/Battery) 185G
    Operating Temperature -20C - +60C
    Frequency Stability ±2.5PPM
    American Military Standard MIL-STD-810C/D/E
    Receiver
    Sensitivity (12dB SINAD) 0.2μV(W) / 0.25μV(N)
    Squelch Selectivity 0.15μV(W) / 0.2μV(N)
    Adjacent Channel Selectivity >65dB(W) / >60dB(N)
    Intermodulation 65dB
    Spurious Rejection >60dB
    Image Rejection >65dB
    FM Ham and Noise <-45dB(W) / <-40dB(N)
    Modulation Type 16KOF3E/11KOF3E
    Operating Bandwidth <±7KHz / <±5KHz
    AF Output @ 4 Ohms 0.5W
    Audio Distortion <5%
    Transmitter
    RF Power Output 2W
    Modulation Type F3E
    Maximum Deviation <5.0KHz(W) / <2.5KHz(N)
    Spurious Emission <65dB
    Modulation Distortion <5%
    FM Noise <-45dB(W) / <-40dB(N)
